Quick Details

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: HanKun
  • Model Number: HK-JSP01
  • Color: yellow/amber
  • Type: LED warning flare
  • Material: aluminum
  • LED Color: red blue yellow white green
  • Size: 800*600*60mm(customizable)
  • Power: 15W-50W
  • Certification: CE ROHS
  • Voltage: 12V
  • Warranty: 3 Years

Packaging & Delivery

Packaging Details original packing,export standard packing or as customer's request
Delivery Time 3-7 work days after order confirmed
Product Description

The solar sign is a safety sign, which is used for dangerous sections or bridges where there are safety hazards such as the ramp, the entrance of the school, the intersection, the turn, the pedestrian channel, and the mountainous section with large fog and low visibility. Road conditions, so that drivers can in the distance on the road to understand, play a stronger warning warning role to reduce road traffic accidents, to remind the driver to pay attention to safe driving, reduce people's lives and property losses. This product has a long life, energy saving, environmental protection, security and stability advantages.

Product Name
Solar traffic signs
Material
Aluminum alloy profiles, thick aluminum, engineering grade reflective film
Standard size
Can be customized to a variety of specifications
Pattern text
Can be customized according to demand
Solar panels
Monocrystalline silicon solar panels 18V / 8W-50W working life> 15 years
Battery
Lead Acid Valve Control Battery: 12V / 7AH-20AHWorking Life> 3 years
LED
Bright 5MM yellow + dedicated condenser + waterproof lens
working environment
-20℃~+70℃
operating hours
Continuous rainy days work more than 240H
Waterproof
IP58
After sale
China 's first three - year quality assurance

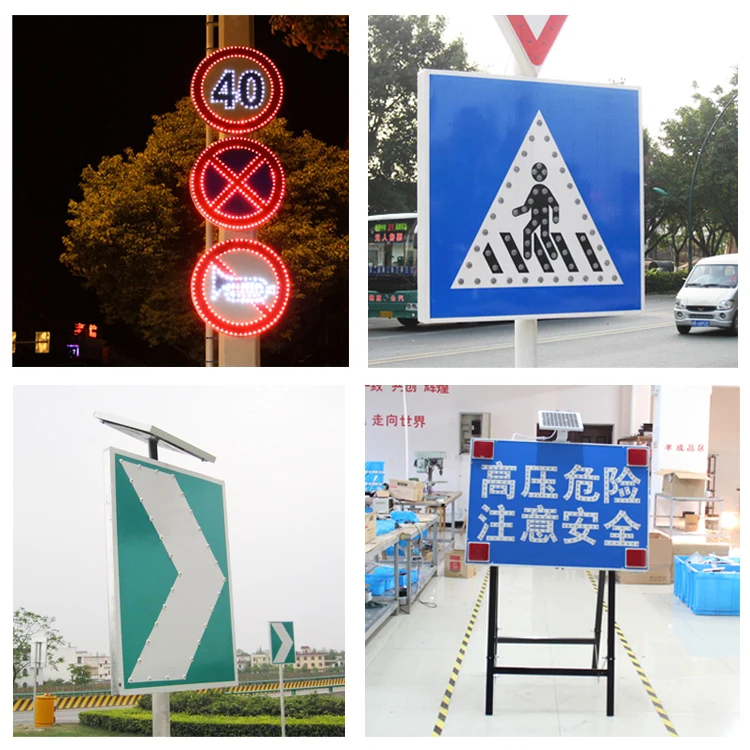

Products Show

Characteristics of solar sign

1, solar flash logo appearance for the square, equilateral triangle, rectangular and other specifications, according to GB production. Clear pattern, obvious signs, beautiful appearance
2, flash logo for the red, green, yellow and other multi-color, the use of solar power, pollution-free, dust, rain.
3, each LED tube are equipped with a separate special lens to ensure that LED luminous tube optical performance to achieve the best, and excellent water resistance.
4, solar panels in the 360-degree range can be any rotation, conversion efficiency, cloudy can also charge the battery.
5, solar panels using single crystal silicon solar panels, at 40. C under the conditions to ensure that the work is normal, the output load voltage is not less than 12V, the output current of not less than 250Am.
6, the battery in the 40.C under the conditions to ensure that the normal work, capacity attenuation of not more than 30%.

Product Details

Monocrystalline silicon solar panels


Han Kun selection of monocrystalline silicon solar panels, conversion rate of up to 18% or more, during the day, the sun shines on the battery, to the battery charge or at the same time to the sign board power supply, according to different use of the environment to adjust the mode. Night, by the solar panel conversion of electricity, the battery to the sign board power supply, LED light tube to keep light or strobe.

High brightness LED, anti-light failure

LED selection quality determines the product brightness, light failure, life; Han Kun chip selection and packaging, quality naturally do not have to say, 100,000 hours of life;

Import 3M reflective film

In addition to the LED light bulb is very important, the choice of reflective film is also very important, because the intensity of the reflective film directly affect the reflective effect of the warning, Han Kun using the United States imported engineering grade reflective film, you can light in the case of strong Reflective, the appearance of clean and refreshing, good visual effects during the day and night reflective engineering grade reflective film, even if the product itself does not light the case of reflective intensity can also play a very good warning role to maintain traffic safety.

Automatic control of light control switch

During the day, the sun shines on the battery panel, charges the battery, or supplies power to the logo plate at the same time. According to different use of the environment to adjust the mode. At night, the battery to the sign board power supply, LED light tube to keep light or flash mode. The lighting time is controlled automatically by the light control switch
